CSS

A slideshow using CSS animations & custom properties

In this article I explain a little trick I used to build an image slideshow by combining css animation & custom properties.

Post Image

The target is to build a full page background slideshow.

HTML :

 <div class="home-hero">
 	<div class="slideshow"></div>
</div>

CSS :

.home-hero {
    height: 100vh;
    width: 100%;
    position: relative;
}

.slideshow {
    height: 100vh;
    width: 100%;
    background-size: cover;
    background-image: url('/backgrounds/image1.jpg');
}

We have our full screen background image. Essentially we want multiple images that appear one at a time and loop infinitely. From here we can have several strategies to create a slideshow.

Let's add some custom properties to make the code easier to work with using this trick :

.slideshow {
  --bg1: url("/backgrounds/image1.jpg");
    background-image: var(--bg1);
}

Let's keep going and define some more css variables, bg1- bg5 and current-bg, which we'll use on the element.

.slideshow {
  --bg1: url("/backgrounds/image1.jpg");
  --bg2: url("/backgrounds/image2.jpg");
  --bg3: url("/backgrounds/image3.jpg");
  --bg4: url("/backgrounds/image4.jpg");
  --bg5: url("/backgrounds/image5.jpg");

  --current-bg: var(--bg1)
  background-image: var(--current-bg);
}

You've probably guessed it by now, we'll swap the custom property --current-bg using css keyframes and combined with an animation property  that should give us an slide show effect.

 .slideshow {
    animation: changeImage 10s linear infinite;
 }

/* Animate using css custom properties */
@keyframes changeImage {
  0% {
    --current-bg: var(--bg1);
  }
  20% {
    --current-bg: var(--bg2);
  }
  40% {
    --current-bg: var(--bg3);
  }
  60% {
    --current-bg: var(--bg4);
  }
  80% {
    --current-bg: var(--bg5);
  }
  100% {
    --current-bg: var(--bg1);
  }
}

And voila ! That gives us a very choppy slideshow where the image just flashes abruptly and starts loading.

Demo 1

Certainly not something we can use in production. We need to add some kind of transition when the image is changing.

Let's make it fade

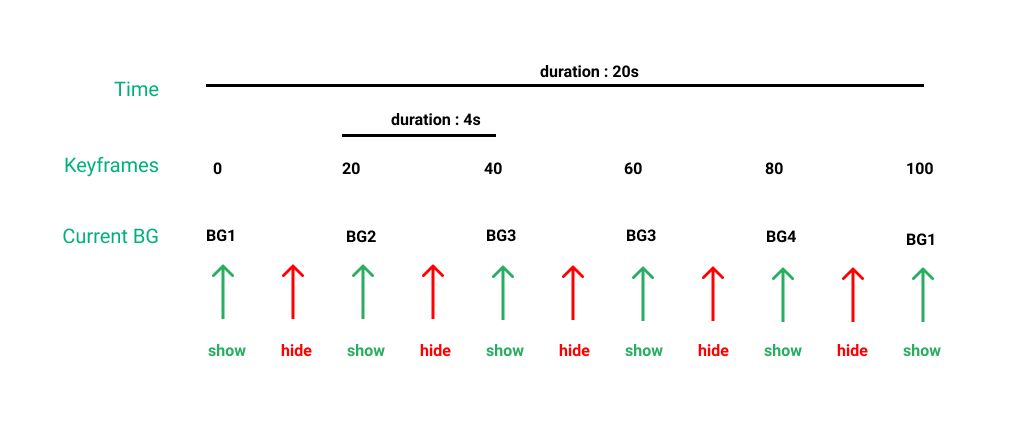

What if we used the opacity property to fade-out the entire image before it changes, then fade in the image again. It would a pain to add more keyframes though, so let's visualize the problem:

We want to show the image at the green parts but hide the image at the red parts

We could write a simple keyframe animation as such :

@keyframes fade {
  25% {
    opacity: 1;
  }
  50% {
    opacity: 0;
  }
  75% {
    opacity: 1;
  }
}

Combined with the ability of CSS animations to be combined on the same element by separating them with commas, we can have the following :

  .slideshow {
    animation: changeImage 20s linear infinite, fade 4s linear infinite;
  }

Demo #2

We can further improve the code by adding to custom properties to calculate the duration of our animations as such :

.slideshow {

  --numberOfImages: 5;
  --duration: 20s;
  --fadeDuration: calc(var(--duration) / var(--numberOfImages));

    animation: changeImage var(--duration) linear infinite, fade var(--fadeDuration) linear infinite;
  }

We end up with a smooth transition between our images, however there's a blank between every image, we want more. We want our image to fade into the next image, not into white, then into the next image.

Smoother transition

To achieve that we can duplicate the .slideshow element in our html and add append a slide .slideshow2. We then add an animation delay, --delay-duration to the second slideshow so that the image is still  underneath the first slide show but the timing is delayed enough so that we don't end up with a white transition in between. Note that the delay duration should be half the duration of 1 slide, we use calc to help us figure out the value.

    <div class="slideshow"></div>
    <div class="slideshow slideshow2"></div>
  .slideshow {
   --numberOfImages: 5;
  --duration: 20s;
  --fadeDuration: calc(var(--duration) / var(--numberOfImages));
  --delay-duration: calc(var(--fadeDuration) / 2 )

    animation: changeImage var(--duration) linear infinite, fade var(--fadeDuration) linear infinite;
  }
  .slideshow2 {
    animation:
        changeImage var(--duration) var(--delay-duration) linear infinite,
        fade var(--fadeDuration) var(--delay-duration) linear infinite;
  }

And now we have a smooth slideshow powered by the CSS features:

  • Custom Properties / CSS Variables
  • animation
  • calc()

Final Demo

Images Credits

All images used in the demo were from Unsplash tagged under Mauritius

Authors:

Bonus: Web Component

After sharing this little trick with Cedric, he quickly made a web-component out of it.

You may check the web component here :

Source : https://github.com/cedpoilly/fec-slideshow

Demo : https://cedpoilly.github.io/fec-slideshow/
